| model | SY400-5 |

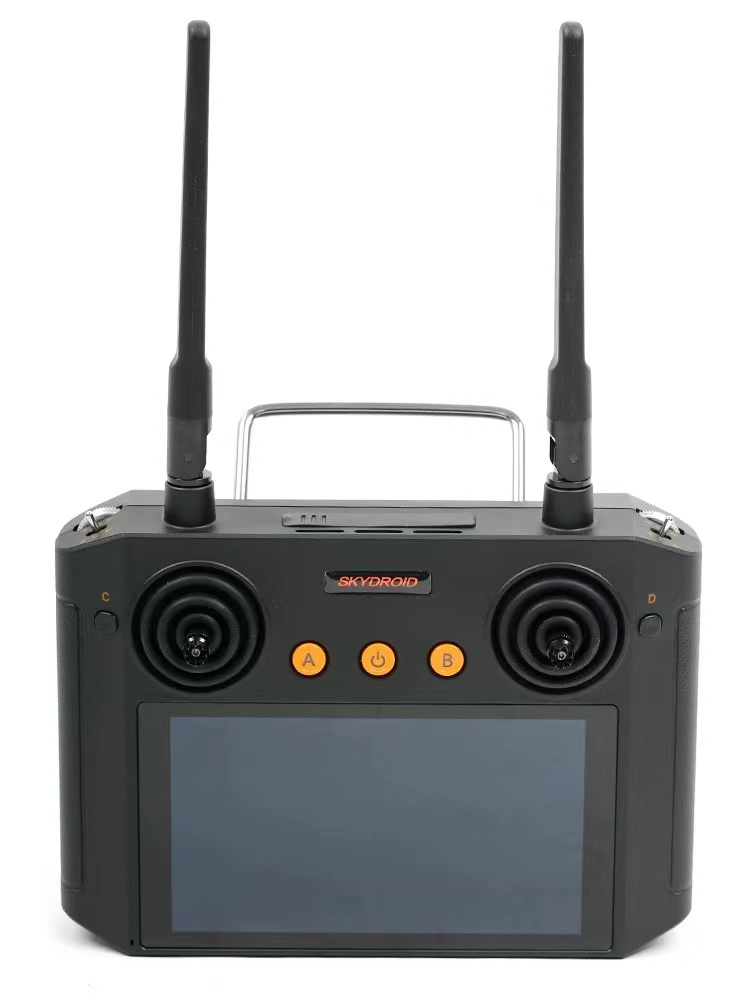

| Image transmission method | Handheld ground station [LCD remote control] |
| body material | Carbon fiber+nylon fiber |
| model | Multi rotor 4-axis foldable |
| Pulpleaf | 24 inch folding paste |
| Brushless motor model | 6-series motor |
| Battery capacity and voltage | 6S1600mAh/expandable capacity |
| Charging time | About 2 hours |
| wheelbase | 1080mm |
| Body dimensions (length,width,height) | 1080mm*800mm*460mm |
| Folding size (length,width,height) | 500mm*500mm*460mm |
| Maximum takeoff weight | 14KG |
| Body weight (excluding battery) | 6.5KG |
| Remote advertising | √ |
| Battery life [empty load] | Standard configuration takes about 30 minutes,expandable to 80 minutes |
| Remote control distance | 10 kilometers (no interference,no obstruction) |
| flight altitude | 500 meters (no interference,no obstruction) |
| Image return distance | 5 kilometers (no interference,no obstruction) |
| Maximum load weight | 5KG |
| System configuration parameters WIFI parameters |
|
| frequency | 5.8GHz wireless LAN/2.4GHz spread spectrum communication/Bluetooth devices |
| Speed switching | Low speed,medium speed,high speed |
| Flight speed | 2m/s to 17m/s |
| Intelligent return | One click return,low battery return,lost contact return |
| Mode switching | Fixed altitude mode/GPSmode/returnmode |
| Support inserting SD card | Equipped with 16GB SanDisk memory card √expandable 64GB memory card |
| pixel | Effective pixels:400W |
| Photo and video storage resolution | 2K |
| Real time image transmission resolution | 1080P |
| PTZ control | One click centering/one click downward/one click upward |
| Camera angle adjustment | Pitch -90°~+10°/Direction axis -90°~+90°/Roll axis 45° |
| photograph | √ |
| videotape | √ |
| Geographic fence | √ |
| satellite positioning | √ |
| Waypoint(trajectory)flight | √ |
| Cruise | √ |
| packing | carton |
| mount | Customizable |
| RTK/4G module/camera | Customizable and optional |
| Customizable shouting | Real time shouting/loop shouting/text shouting/MP3 playback |
